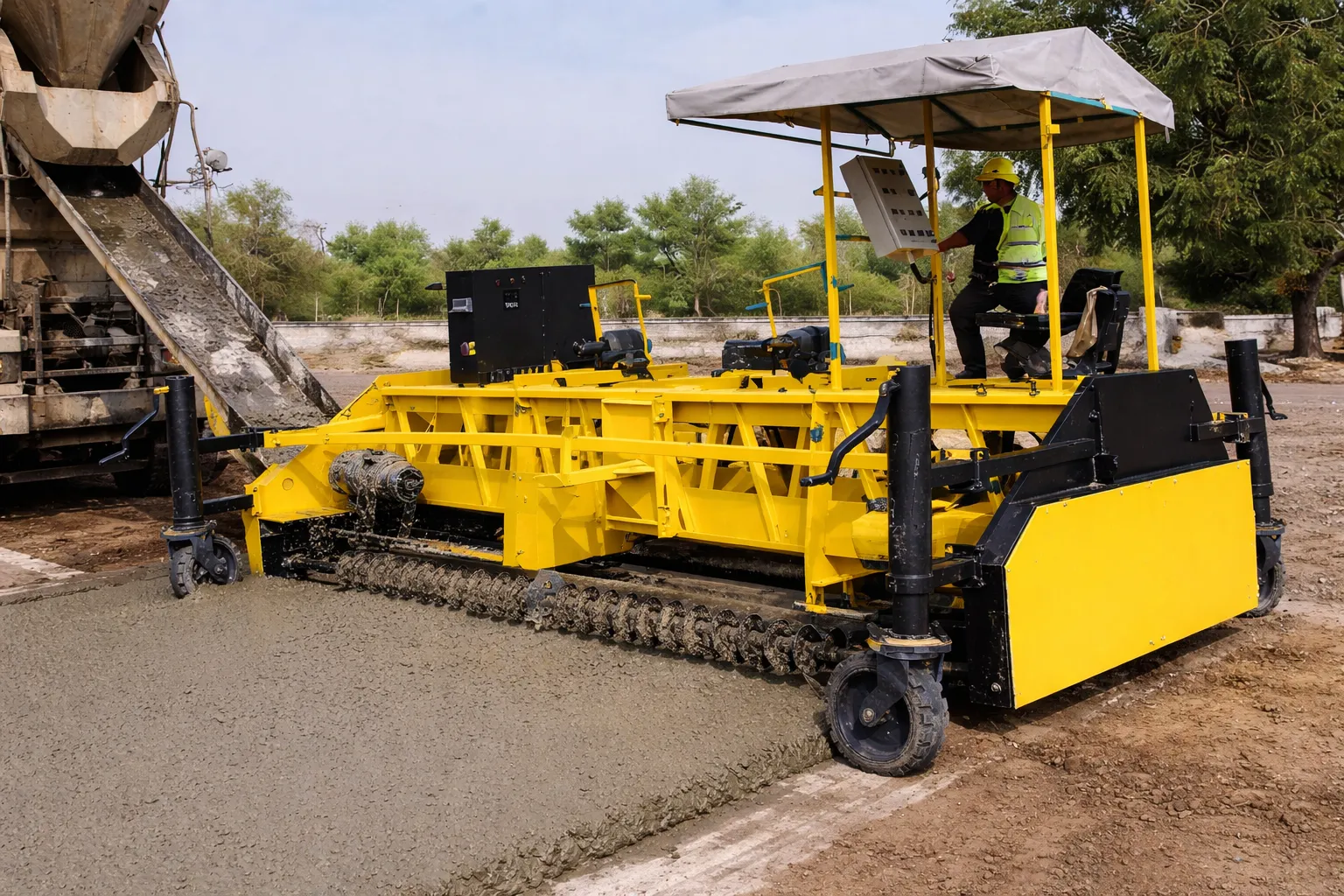

We manufacture Concrete Screed Paver Machines with complete mechanical, electrical, and structural systems designed for concrete road construction, flooring, and canal work. Each machine is built as a fully integrated unit with all functional components required for spreading, leveling, and compaction.
Price Range (Based on Configuration)
| Working Width Configuration | Price Range (₹) |
|---|---|
| 2 – 3 Meter Screed Machine | 2,00,000 – 3,80,000 |
| 3 – 4.5 Meter Screed Machine | 3,50,000 – 6,50,000 |
| 4 – 6 Meter Roller Screed | 5,50,000 – 9,50,000 |
| 6 Meter+ Heavy-Duty Machine | 8,00,000 – 14,00,000 |
Price depends on screed type, number of vibrators, power system, and fabrication structure.
Complete Machine Breakdown (All Components Included)
Main Frame Structure
- Heavy-duty MS fabricated frame
- Reinforced cross members for load stability
- Anti-vibration structural design
- Screed mounting brackets with alignment system
Screed Assembly System
- Screed plate (wear-resistant steel)
- Roller pipe or vibratory screed beam
- End plates for width control
- Screed extension sections
Function:
- Spreads and levels concrete
- Maintains surface uniformity
- Controls road thickness
Vibration & Compaction System
- High-frequency vibrator motors mounted on screed
- Adjustable vibration intensity
- Uniform compaction across full width
Options:
- Single vibrator setup
- Multi-vibrator heavy-duty setup
Power System
Diesel Model:
- Diesel engine (air or water cooled)
- Fuel tank with mounting
- Throttle control system
Electric Model:
- 3-phase electric motor
- Starter panel (DOL / star-delta)
- Power cable and connectors
Power Transmission System
- Gearbox for torque conversion
- Chain or belt drive system
- Shaft-driven screed operation
- Couplings and bearings
Material Spreading System
- Concrete feeding through manual or external arrangement
- Even distribution across screed width
- Designed for continuous flow leveling
Leveling & Thickness Control System
- Mechanical screw jack height adjustment
- Screed angle control mechanism
- Manual thickness setting system
Mobility System
- Wheel-mounted or rail-guided structure
- Stable movement during operation
- Easy positioning on site
Control System
- Operator control panel or handle
- Speed control for engine or motor
- Vibration ON/OFF control
- Direction and movement control
Electrical System (Electric Models)
- Control panel with switches
- Overload protection system
- Internal wiring and connectors
- Emergency stop provision
Bearings & Mechanical Elements
- Heavy-duty bearings
- Pillow block supports
- Industrial fasteners
- Lubrication points
Optional Attachments & Custom Add-ons
- Extended screed sections
- Additional vibrator motors
- Winch system for pulling
- Side forms or guiding plates
- Heavy-duty electrical panel
- Custom mobility configurations
Machine Working Process
- Concrete is placed manually or via external feeding system
- Material is spread across required width
- Screed system performs leveling
- Vibrator or roller compacts the concrete
- Thickness and finish are controlled through adjustment system
Technical Specifications
| Parameter | Details |
|---|---|
| Working Width | 2 to 6 meter (extendable) |
| Screed Type | Roller or Vibratory |
| Power Source | Diesel or Electric |
| Operation Type | Manual or Semi-Automatic |
| Mobility | Wheel or Rail Based |
| Compaction System | Vibrator or Roller |
Important Clarification
- This machine is a Concrete Screed Paver designed for leveling and finishing
- Concrete feeding is external unless specified
- Fully automatic pavers with hopper and auger are separate machines
Manufacturing & Build Quality
- Heavy-duty MS fabrication
- Precision screed alignment
- Designed for long operational life
- Suitable for continuous site usage
Get Exact Price & Machine Configuration
To receive quotation, share:
- Required working width
- Screed type (roller or vibratory)
- Power preference (diesel or electric)
- Project type
- Delivery location
We provide complete machine details, exact pricing, manufacturing timeline, and direct supply with all components included.
